Combined Sewer Overflow (CSO) monitoring

What is a Combined Sewer Overflow (CSO)?
First, a quick primer: A Combined Sewer System (CSS) is an older wastewater infrastructure design that collects stormwater runoff, domestic sewage, and industrial wastewater into a single pipe. During dry weather, it transports all this wastewater to a treatment plant. However, during heavy rainfall or snowmelt, the volume can exceed the system’s capacity. To prevent backups into homes and streets, the system is designed to overflow at specific points, discharging a mixture of untreated sewage and stormwater directly into nearby rivers, lakes, or oceans. These discharge points are CSOs.

Why is CSO Monitoring Critical?
CSOs are a major source of water pollution, introducing pathogens, nutrients, toxins, and suspended solids into water bodies. Monitoring is essential for:

Public Health Protection: To warn the public about potential contamination of recreational waters (e.g., swimming, boating).

Regulatory Compliance: To meet the requirements of environmental agencies (like the EPA in the US) under permits like the National Pollutant Discharge Elimination System (NPDES).

System Intelligence: To understand the frequency, volume, and composition of overflows, which informs:

Infrastructure Planning: Prioritizing investments in green and gray infrastructure.

CSO Long-Term Control Plans (LTCPs): Developing strategies to reduce or eliminate overflows.

Modeling and Prediction: Calibrating hydraulic models to predict system behavior under different weather conditions.

Transparency and Reporting: Providing data to regulators and the public to demonstrate progress and compliance.

Key Components of a CSO Monitoring System
A modern CSO monitoring system is an integrated network of hardware and software.

1. Sensing and Measurement Hardware

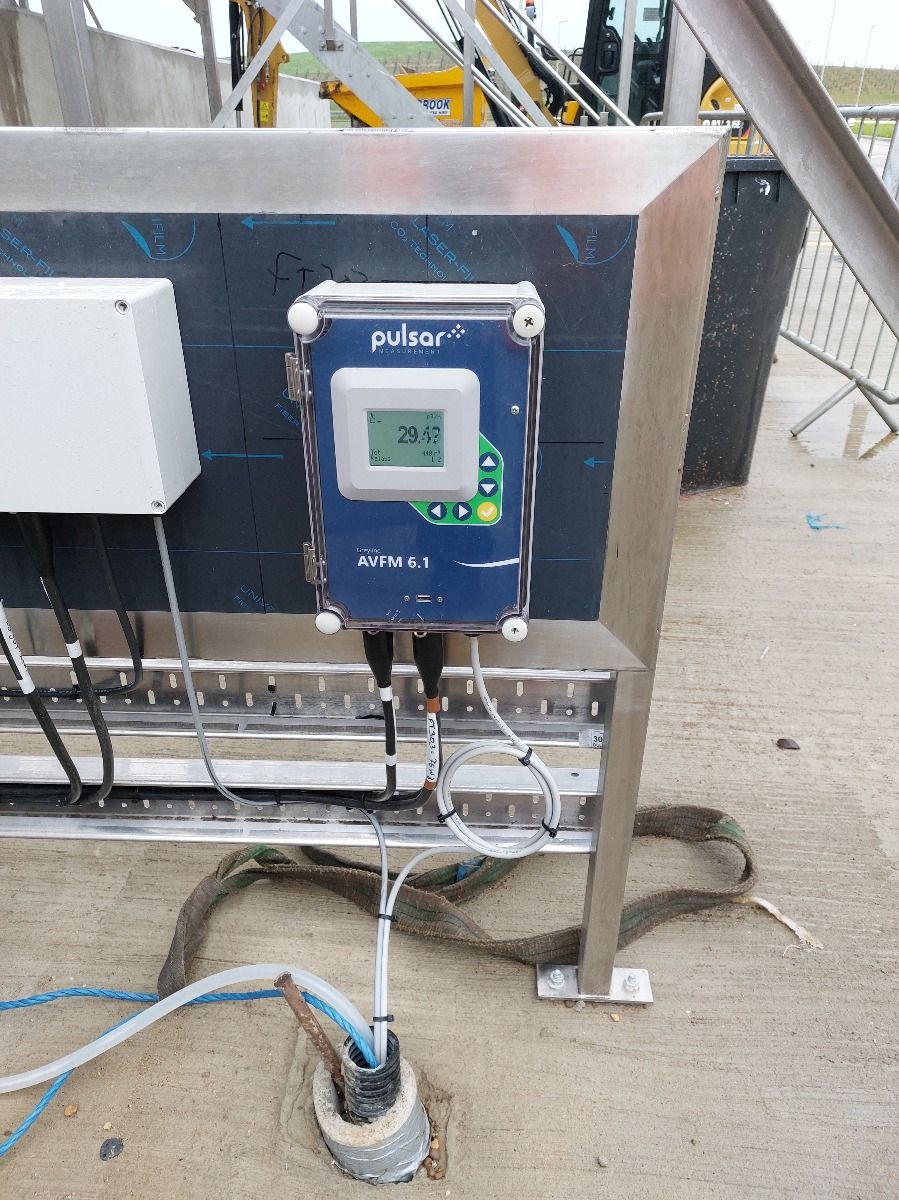

   Flow Meters: To measure the rate and total volume of the overflow.

Types: Ultrasonic (transit-time or Doppler), electromagnetic, area-velocity sensors.

Placement: Installed in the CSO outfall pipe or structure.

Level Sensors: To measure the depth of water in the sewer pipe or overflow structure. This data can be used to calculate flow.

Types: Pressure transducers, bubbler systems, radar, ultrasonic.

Water Quality Sensors: To characterize the pollution load of the overflow.

Common Parameters: Turbidity (a surrogate for suspended solids), Conductivity (helps distinguish between stormwater and sewage), pH, Ammonia, COD (Chemical Oxygen Demand).

Rain Gauges: To correlate overflow events with precipitation data. This is crucial for model calibration and prediction.

Cameras: Visual confirmation of an overflow event, useful for verifying sensor data and identifying debris blockages.

2. Data Acquisition and Telemetry
   Data Loggers: On-site devices that collect and store data from all the sensors.

Telemetry Systems: Transmit the data from the remote CSO site to a central office in near real-time.

Methods: Cellular modems (most common), satellite, radio, or wired internet.

3. Software and Data Management
   SCADA (Supervisory Control and Data Acquisition): Industrial control systems for real-time monitoring and sometimes remote control of gates or pumps.

Data Platforms/Cloud Services: Modern systems use cloud-based dashboards to:

Visualize data (charts, maps, gauges).

Set and manage alarms (e.g., “CSO 12 has begun discharging”).

Store and manage historical data.

Generate automated reports for regulators.

Monitoring Strategies and Technologies in Practice
Traditional vs. Smart Monitoring
Traditional: Relied on manual inspections, simple level recording, and post-event analysis. Slow and provided limited data.

Smart/Smart Sewer Systems: Uses the integrated network described above to provide a continuous, real-time view of the entire collection system. This allows for:

Real-Time Control (RTC): Using sensors and automated gates to dynamically manage flows in the sewer network, actively redirecting water to maximize storage and treatment capacity and minimize overflows.

Predictive Analytics: Combining real-time sensor data with weather forecast data in a hydraulic model to predict where and when overflows are likely to occur hours in advance.

Specific Monitoring Approaches for CSOs
Event Detection: The primary goal—confirming that an overflow has started and stopped. This is often done with a combination of a level sensor and a conductivity sensor (a sudden drop in conductivity can indicate the influx of relatively clean stormwater).

Volume Quantification: Using a flow meter to measure the total volume discharged during an event. This is critical for calculating pollutant loads.

Characterization: Sampling the water during an overflow event to analyze its specific pollutant concentrations. This can be done with:

Automatic Samplers: Deployed at the site, they are triggered by a rising water level to collect discrete or composite samples for lab analysis.

In-Situ Sensors: As mentioned above, sensors like turbidity can act as surrogates for more difficult-to-measure pollutants.

Challenges in CSO Monitoring
Harsh Environment: Sensors are exposed to raw sewage, grease, debris, and corrosive gases, leading to fouling and potential failure. Robust sensor design and frequent maintenance are required.

Data Management: The volume of continuous data can be overwhelming. Effective systems need robust data validation and management protocols.

Cost: Installing and maintaining a comprehensive monitoring network across dozens or hundreds of CSO outfalls is expensive.

Accuracy: Ensuring that flow and quality measurements are accurate in a complex, mixed-flow environment is technically challenging.

The Future of CSO Monitoring
The trend is toward more integrated, intelligent, and cost-effective systems:

Lower-Cost Sensors: Development of more durable and affordable sensors to enable denser monitoring networks.

AI and Machine Learning: Using AI to detect anomalies, predict sensor failure, improve the accuracy of flow measurements, and optimize system control beyond what traditional models can do.

Digital Twins: Creating a virtual, dynamic replica of the entire sewer system. This allows utilities to simulate the impact of different rainfall scenarios or control strategies before implementing them in the real world, leading to better decision-making.

Enhanced Public Communication: Using monitoring data to power public-facing apps and websites that notify citizens in near real-time about water quality advisories after a CSO event.

In conclusion, CSO monitoring has evolved from a simple compliance exercise to a core function of modern wastewater utilities. It provides the essential data needed to protect public health, meet regulatory demands, and strategically invest in infrastructure to clean up our nation’s waterways.
